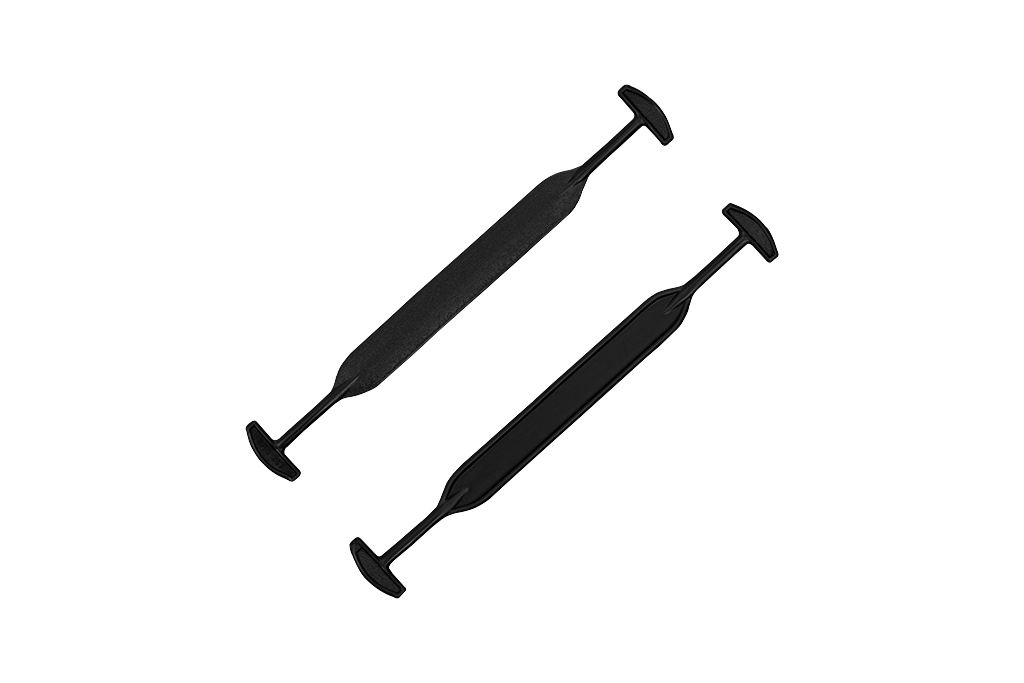

Carrying Handle
EKS 169.0
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
.jpg)
.jpg)
.jpg)
.jpg)
Produktbeschreibung
- offers high carrying comfort through its profiled middle part
- combinable with reinforcing plates EKS 165.6 and EKS 991.0 as well as reinforcing ring EKS 607.0
- insertable into reinforcing plate EKS 165.6 in a twist-safe manner due to oval cross-sections of handle runouts
- loadable up to 12 kg or 22 kg depending on material
- made of soft or hard material
- identical with carrying handle EKS 267.0
- difference: cross-section of runouts
Product Data
- A=186.0 mm
- G=5.8 mm
- B=170.0 mm
- H=4.2 mm
- C=110.0 mm
- J=n/a
- D=25.0 mm
- K=n/a
- E=15.0 mm
- L=n/a
- F=3.0 mm
- M=n/a
- N=n/a
Assembly Data
- A=17.0 mm
- D=n/a
- B=6.0 mm
- E=n/a
- C=135.0 mm
- F=n/a
