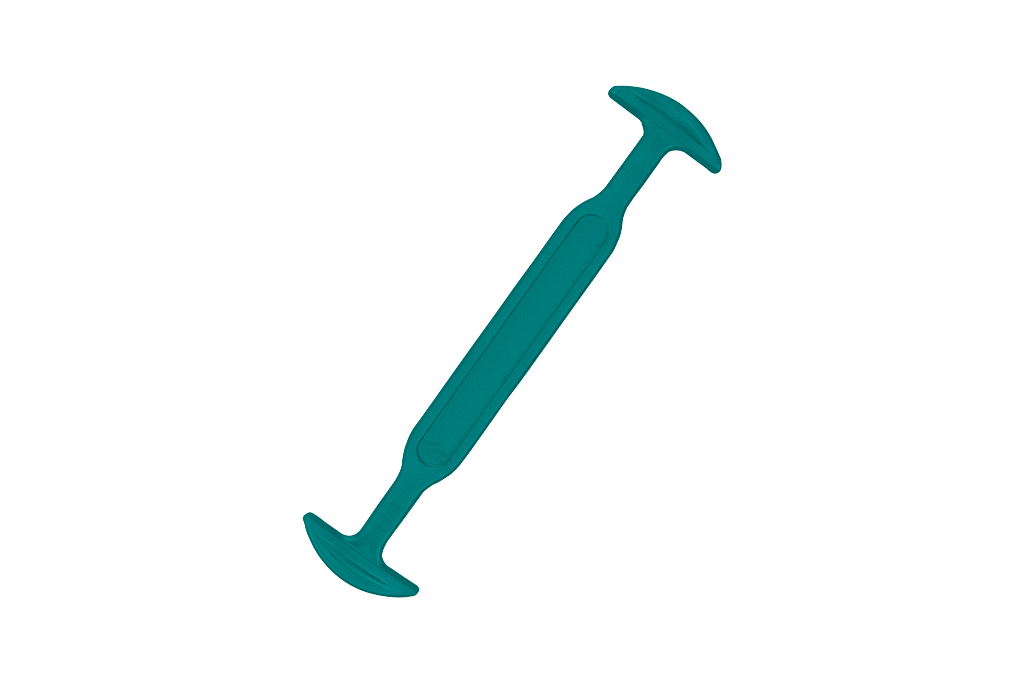

Image of product

Heavy Lift– / Heavy Duty Handle

EKS 385.0

Produktbeschreibung
  • identical to handle EKS 385.5
  • outstanding through its high stability
  • offers high carrying comfort due to its strongly rounded edges
  • combinable with reinforcing plate EKS 385.1
  • made of soft or hard material
  • loadable up to 35 kg or 55 kg depending on material
Product Data

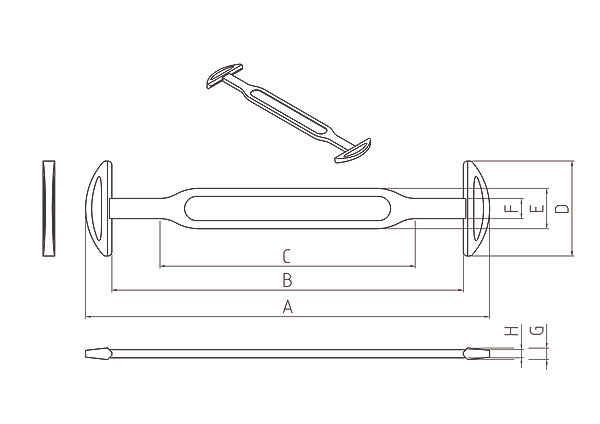

Pic: 385.0.jpg
  • A=200 mm
  • G=6 mm
  • B=173 mm
  • H=4 mm
  • C=115 mm
  • D=48 mm
  • E=20 mm
  • F=10 mm
Assembly Data

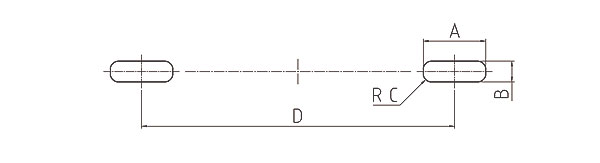

Pic: 385.0.jpg
  • A=30 mm
  • D=150 mm
  • B=10 mm
  • C=4 mm
  •
  •
  •
