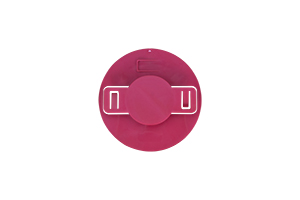

Produktbeschreibung
- for detachable connection of several layers of corrugated cardboard
- reusable
- sits flush on the front side, wears little on the inside
- for connection distances up to 22 mm
- also available in versions for connection distances of 8 mm, 14 mm, 15 mm, 18 mm, 21 mm and 26 mm
- assembled by a 90° clockwise rotation all the way to the stop
- disassembled by a 90° anticlockwise rotation (self explanatory symbols)
- no mounting space on the rear side required
- made of standard material
- also available as Bayonet Seal Lock EKS 022.1
Product Data
Assembly Data
-
A=50 mm
-
D=3 mm
-
B=93 mm
-
C=27 mm
-
-
-
