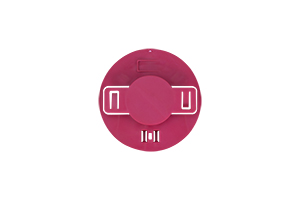

Bayonet Seal Lock

EKS 022.1

Produktbeschreibung
  • for detachable connection of several layers of corrugated cardboard
  • additional security function by using a security pin and seal EKS 373.1
  • sits flush on the front side, wears little on the inside
  • for connection distances up to 22 mm
  • also available in versions for connection distances of 8 mm, 14 mm, 15 mm, 18 mm, 21 mm and 26 mm
  • reusable
  • assembled by a 90° clockwise rotation all the way to the stop
  • disassembled by a 90° anticlockwise rotation (self explanatory symbols)
  • no mounting space on the rear side required
  • made of standard material
  • also available as Bayonet Lock 022.0 (no security function)
Product Data
  •
  •
  •
  •
  •
Assembly Data
Pic: 022.1.jpg
  • A=50 mm
  • D=3 mm
  • B=93 mm
  • C=27 mm
  •
  •
  •
Alternatives:
none
