Bayonet Lock
EKS 018.0
=014.0-(1)=018.0-(1)=022.0-(1)=026.0-(1).jpg)
=014.0-(2)=018.0-(2)=022.0-(2)=026.0-(2).jpg)
=018.0-(1).jpg)
Produktbeschreibung
- for detachable connection of several layers of corrugated cardboard
- reusable
- sits flush on the front side, wears little on the inside
- for connection distances up to 18 mm
- also available in versions for connection distances of 8 mm, 14 mm, 15 mm, 21 mm, 22 mm and 26 mm
- assembled by a 90° clockwise rotation all the way to the stop
- disassembled by a 90° anticlockwise rotation (self explanatory symbols)
- no mounting space on the rear side required
- made of standard material
- also available as Bayonet Seal Lock EKS 018.1
Product Data

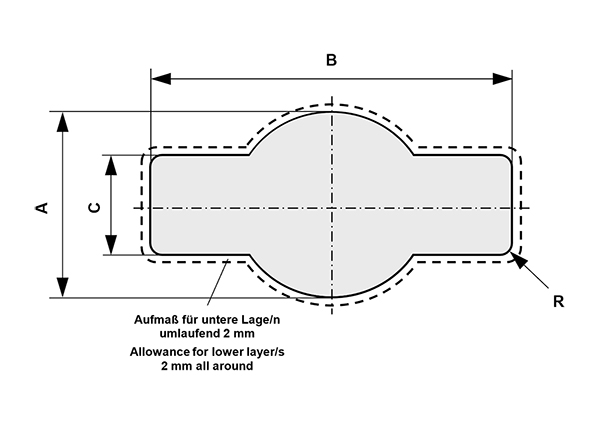

Assembly Data
- A=50 mm
- D=3 mm
- B=93 mm
- C=27 mm
