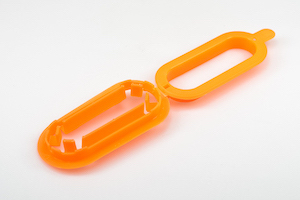

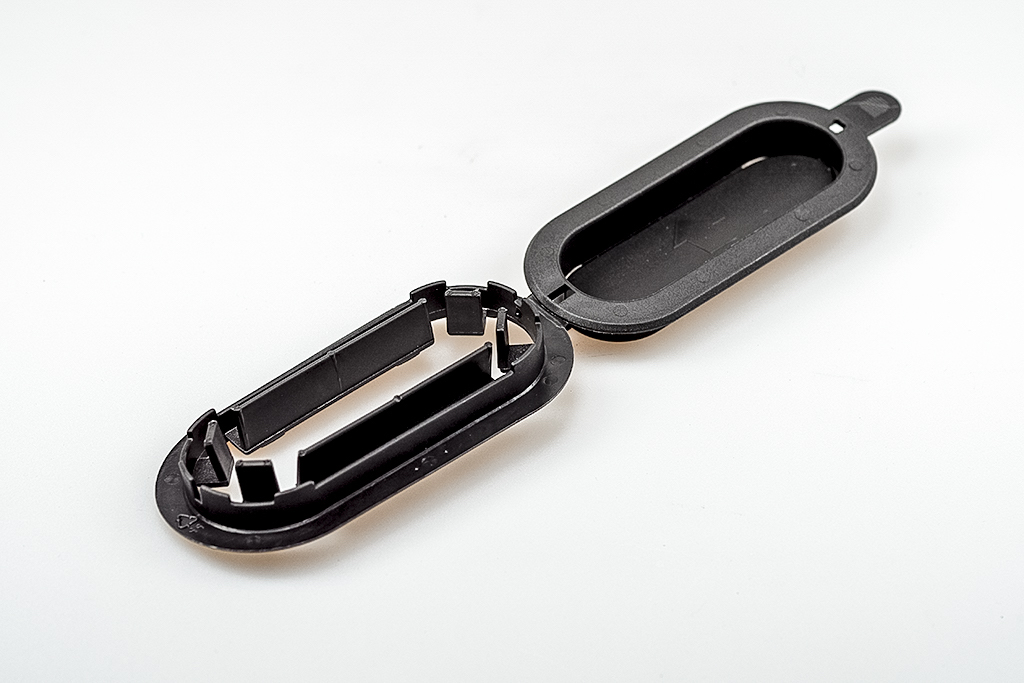

Hand Hole Reinforcer
EKS 999.0
.jpg)
.jpg)
.jpg)
Produktbeschreibung
- for cardboard boxes with wall thickness of 8 mm
- for usual hand hole punchings
- prevents tearing the cardboard and increases carrying comfort
- equipped with a hinged dust excluder
- wears out only slightly on outside and inside
- assembled on two opposite sides
- quick to assemble
- can be assembled on already closed packages
- made of standard material

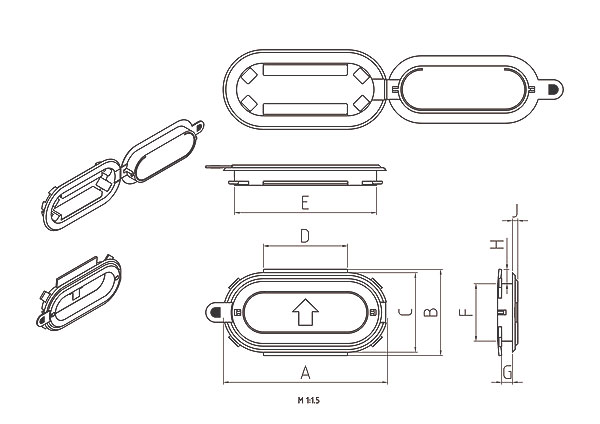

Product Data
- A=120 mm
- G=8 mm
- B=64 mm
- H=10 mm
- C=59 mm
- J=5.5 mm
- D=62 mm
- E=106 mm
- F=44 mm

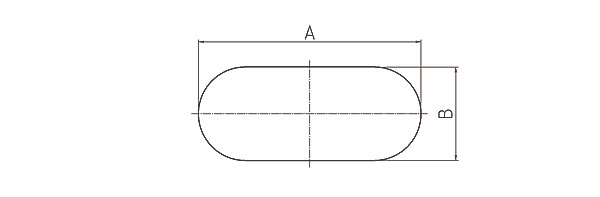

Assembly Data
- A=107 mm
- B=45 mm
